Oracle EBS R12 Architecture

The Oracle Applications Architecture is a framework for multi-tiered, distributed computing that supports Oracle Applications products. In this model, various servers or services are distributed among three levels, or tiers.

Technology advances for EBS R12–
Certified on Oracle Fusion Middleware–Adapted the latest technology:

Oracle 10gR2 Database

Oracle Application Server 10g (10.1.2 for Forms & Reports, 10.1.3 for HTML & Java)

OA Framework and the new user interface

Oracle Containers for Java (OC4J)

Oracle Personalization

Extending R12 with JDeveloper10.1.3

Integration Repository
XML Publisher

Fully Certified on 64 bit platforms for App and DB tiers compared to 11.5.10 that requires 32 bit for App tier

R12 Oracle homes :

:

• The 10g Release 2 (10.2) Database Server ORACLE_HOME replaces the Oracle9i
ORACLE_HOME used in Release 11i.

• The Application Server 10.1.2 ORACLE_HOME (sometimes referred to as the Tools,
C, or Developer ORACLE_HOME) replaces the 8.0.6 ORACLE_HOME provided by
Oracle9i Application Server 1.0.2.2.2 in Release 11i.

• The Application Server 10.1.3 ORACLE_HOME (sometimes referred to as the Web
 Java ORACLE_HOME) replaces the 8.1.7-based ORACLE_HOME provided by
Oracle9i Application Server 1.0.2.2.2 in Release 11i.

R12 File System:

The db/apps_st/data (DATA_TOP) directory is located on the database node

machine, and contains the system tablespaces, redo log files, data tablespaces, index
tablespaces, and database files

 The db/tech_st/10.2.0 directory is located on the database node machine, and
contains the ORACLE_HOME for the Oracle10g database

The apps/apps_st/appl (APPL_TOP) directory contains the product directories and
files for Oracle Applications

The apps/apps_st/comn or (COMMON_TOP or COMN_TOP) directory contains
directories and files used across products

The apps/tech_st/10.1.2 directory contains the ORACLE_HOME used for the
Applications technology stack tools components

The apps/tech_st/10.1.3directory contains the ORACLE_HOME used for the
Applications technology stack Java components


Instance Home: Instance top : INST_TOP

Oracle Applications Release 12 introduces the concept of a top-level directory for an

Applications instance. This directory is referred to as the Instance Home, and denoted by
the environment variable $INST_TOP.


The basic structure of the instance home is:

/inst/apps//, where APPS_BASE (which does not
have or need a corresponding environment variable) is the top level of the Applications
installation, and is the highest level at which the Applications context exists.

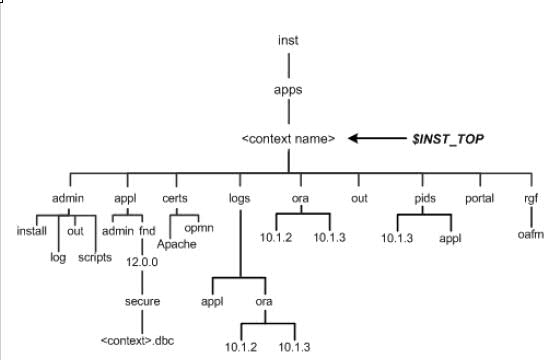

Instance Home Directory Structure

$INST_TOP/admin/scripts ($ADMIN_SCRIPTS_HOME): All AD scripts are located here
$INST_TOP/appl ($APPL_CONFIG_HOME) : For standalone envs, this is set to $APPL_TOP
$INST_TOP/appl/fnd/12.0.0/secure FND_SECURE: The dbc file is located here
$INST_TOP/appl/admin All the env config files are located here
$INST_TOP/certs SSL Certificates go here
$INST_TOP/logs LOG_HOME: Central log file location. All log files are placed here (except adconfig)
$INST_TOP/logs/ora ($ORA_CONFIG_HOME)
$INST_TOP/logs/ora/10.1.2 Contains tnsnames and forms listener servlet config files
$INST_TOP/logs/ora/10.1.3 Apache & OC4J config home, Apache, OC4J and opmn. ‘Java’ oracle home configuration for OPMN, Apache and OC4J
$INST_TOP/pids Apache/Forms server PID files are located here
$INST_TOP/portal Apache’s DocumentRoot folder

New login screen for R12 oracle applications:

Startup and Shutdown r12

Application tier scripts (adstrtal.sh, adstpall.sh) can be found under $INST_TOP/admin/scripts directory, stop the services as applmgr user.


Database tier scripts (addbctl.sh, addlnctl.sh) can be found under $RDBMS_ORACLE_HOME/appsutil/scripts/ directory, stop the services as oracle user.


R12 instance:   Release 12 Vision for public access.by Solution Beacon
http://www.solutionbeacon.com/tools_r12vision.htm


Please feel free to ask any questions related to R12 new features.
